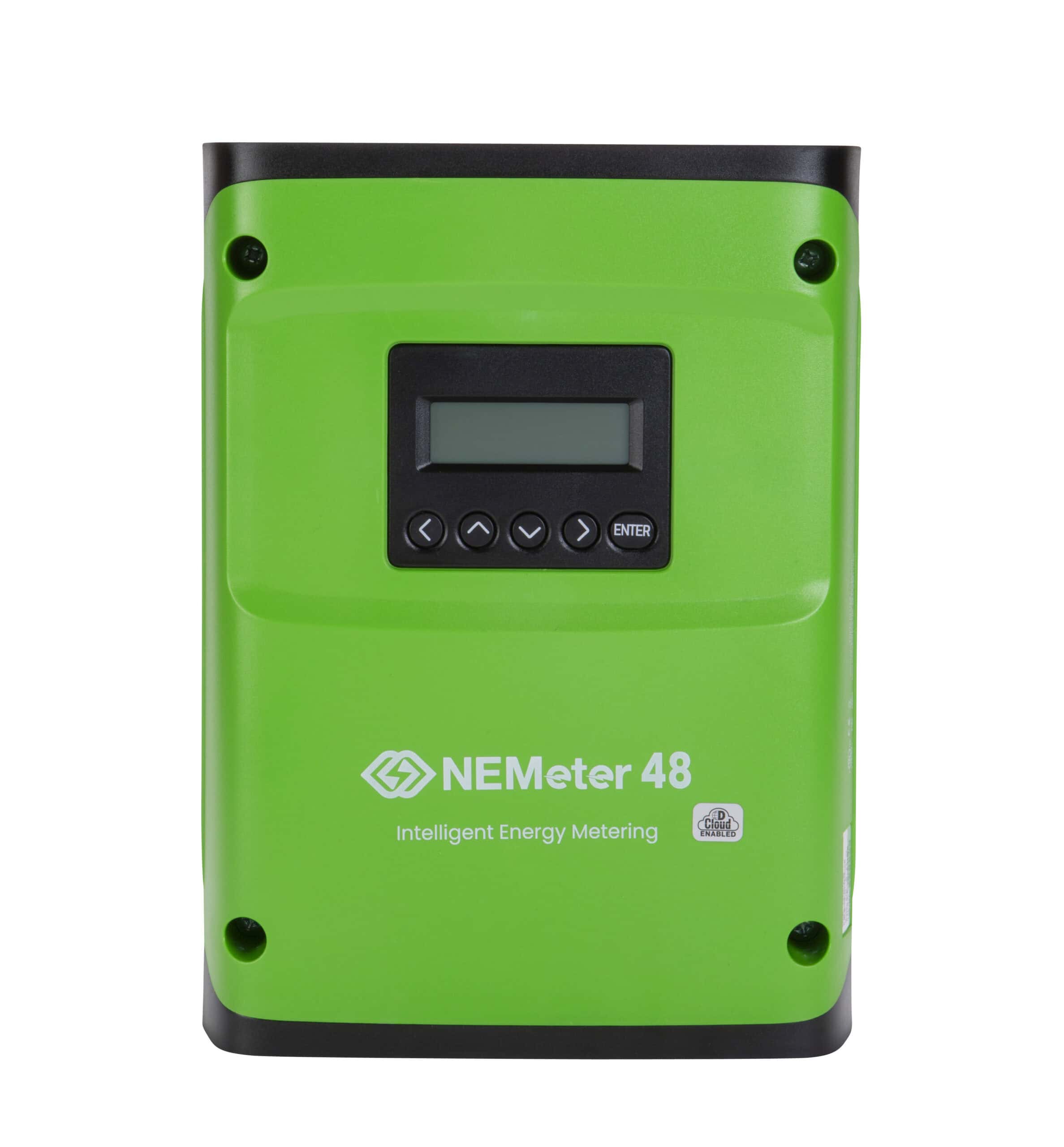

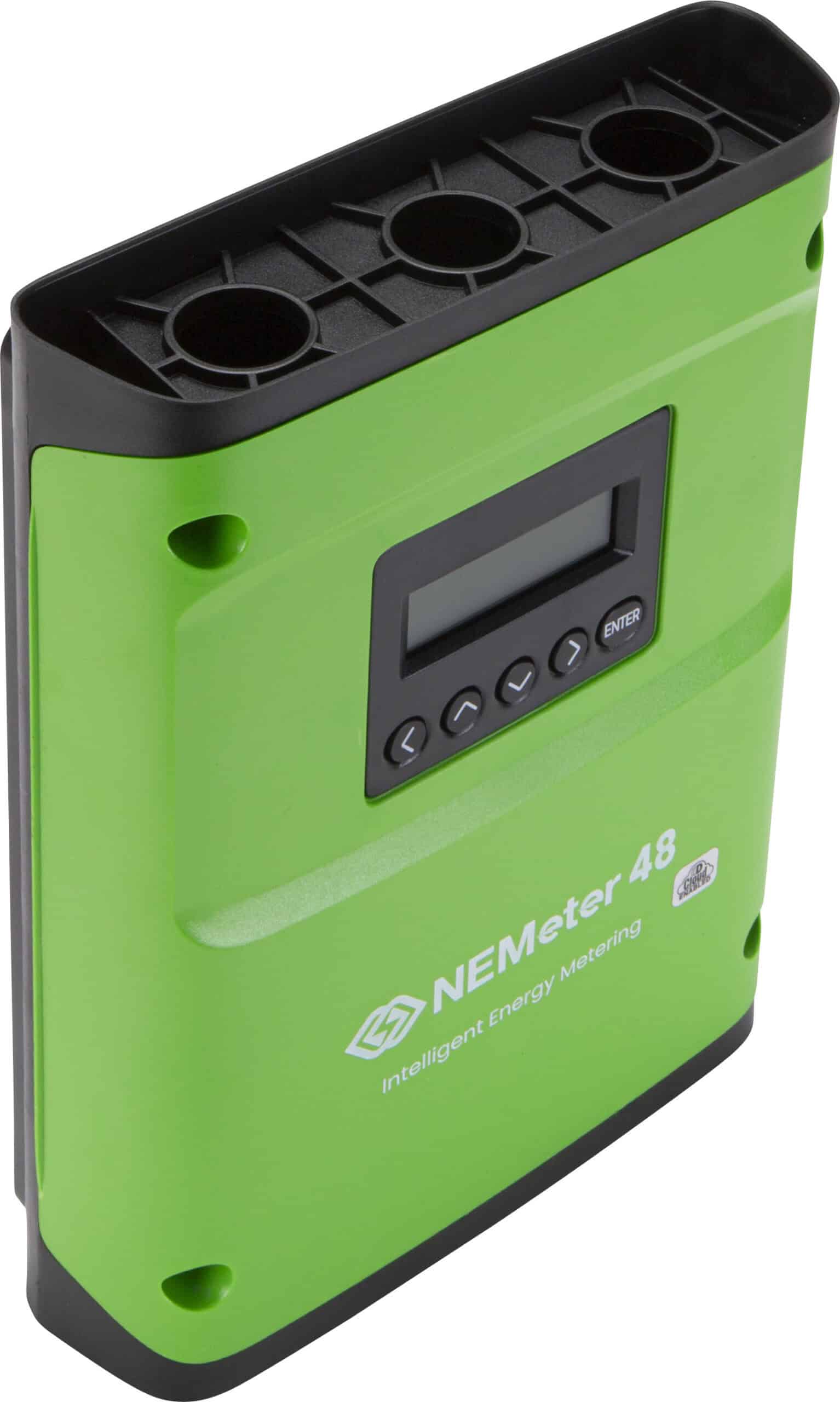

The NE Meter 48 is a high-density, revenue-grade multi-circuit submeter designed for large commercial, industrial, data center, and tenant submetering applications. Supporting up to 24 single-phase and 16 three phase loads, it delivers real-time monitoring of voltage, current, power, and energy consumption with ANSI C12.20 Class 0.2 accuracy.
Built for large-scale energy monitoring deployments, the NE Meter 48 supports BACnet and Modbus communications, serial and Ethernet connectivity, and integration with building automation and energy management systems. PowerTrack Cloud connectivity provides secure access to real-time and historical energy data, while flexible CT compatibility and dual voltage inputs simplify installation across a wide range of applications.
Features & Benefits
PowerTrack Cloud*
Secure access to real-time and historical energy data through the PowerTrack web portal.
Pulse Inputs*
Two pulse inputs allow integration with external utility meters and monitoring devices.
High-Voltage Safety Cover*
Protective cover separates high-voltage connections from low-voltage CT wiring for added installation safety.
Flexible CT Compatibility*
Compatible with solid-core, split-core, hinged, and Rogowski-style current transformers.
*Requires communication protocol
| Wired | Protocols |
|---|---|
| Ethernet | BACnet/IP |
| RS-485 | BACnet MS/TP |
| USB C access | Modbus TCP, Modbus RTU |
