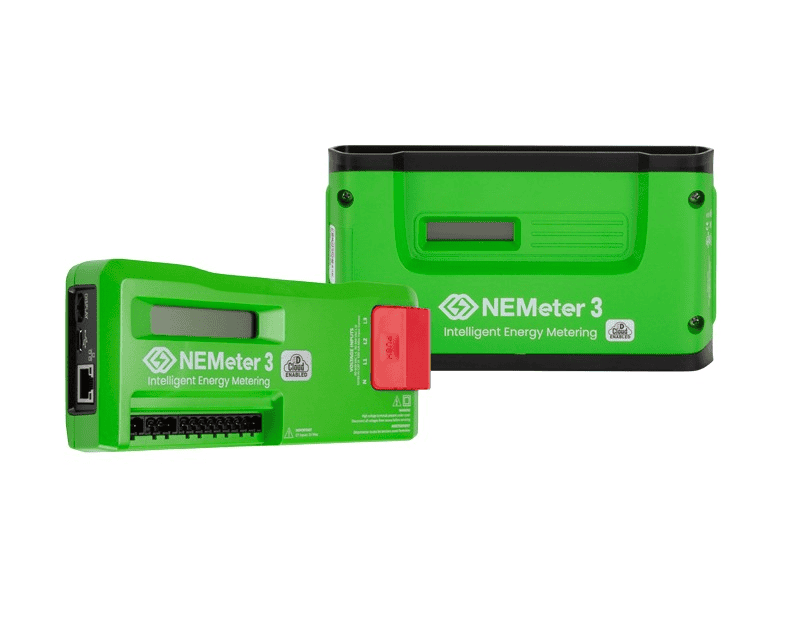

NE 3

The NE Meter 3 is a revenue-grade 3-phase energy meter designed for commercial, industrial, and tenant submetering applications. Monitor voltage, current, power, and energy consumption with ANSI C12.20 Class 0.2 accuracy. Supporting BACnet and Modbus communications, the NE Meter 3 integrates easily with building automation systems, energy management platforms, and facility monitoring networks.

Available in DIN rail and wall mount configurations, it delivers reliable real-time energy data for power monitoring, cost allocation, and energy management.

Dimensions:

DIN Rail Version : (L) 19.08cm x (W) 8.23cm x (H) 3.76cm (7.51” x 3.24” x 1.48”)
Wall Mount Version : (L) 25.70cm x (W) 14.00cm x (H) 5.37cm (10.12” x 5.50” x 2.12”)

Features & Benefits

PowerTrack Cloud*

Secure remote access to real-time and historical energy data through the PowerTrack web portal.

Interval Data Logging*

Stores up to 63 days of interval energy data for reporting and analysis.

Alarm Output*

User-configurable alarm output for monitoring power quality and system conditions.

Advanced Diagnostics*

CT orientation verification helps identify installation issues and simplifies commissioning.

*Requires communication protocol

Wired	Protocols
Ethernet	BACnet/IP
RS-485	BACnet MS/TP
USB C access	Modbus TCP, Modbus RTU

CAT-M1 Cellular Adapter Simple cellular wireless connectivity for remote NEMeter access through PowerTrack Online.

CT4 Cellular & Wi-Fi Adapter Flexible broadband cellular and Wi-Fi communication for remote sites, local wireless ISP connections, and PowerTrack Online access.

3-phase energy monitoring for single- and three-phase systems

Revenue-grade accuracy (ANSI C12.20 Class 0.2)

90–600 VAC line-powered operation

UL Listed, CE Mark, and BTL Certified

Compatible with split-core, solid-core, hinged, and Rogowski-style CTs

Real-time meter and system data display

Stores up to 63 days of interval data
